DTSD8080M-4Q/P release
Add Date: 2016-3-15 Views: 8204
Since November 10, 2015, China Tower Co., Ltd. issued "base station exchange smart meter technical specifications" standard Q / ZTT 1017-2015. Our R & D personnel went to Beijing headquarters and related technical drafting engineer,The details of the details of the detailed communication, fully understand the requirements of the tower, the first time into development, and within a month to send samples to detect, in full compliance with the technical specifications. Has been reached with a number of communications packages to reach cooperation.
The product features are:
① in accordance with the November 10, 2015 China Railway Corporation Co., Ltd. issued by the enterprise standard Q / ZTT 1017-2015 research and development, in line with the latest technical standards. :
② can measure three-phase 4-channel active energy, reactive power, and the measurement of the circuit voltage, current, power, power factor and other electrical parameters.
③ using black and white dot matrix LCD display, easy on-site debugging, view instrument measurement parameters.
④ built-in transformer (0 ~ 5A variable ratio input), external transformer (0 ~ 20mA variable ratio input) optional, when ordered by the instructions.
⑤ monitoring interface: a DO interface, 6 DI interface.
⑥ with historical power data, historical operation data and historical alarm information storage function, the historical data daily 0 automatically saved, real-time data 15 minutes automatic storage.
⑦ RS485 communication, interface protocol in line with YD / T 1363 "Communications Bureau (station) power, air conditioning and environmental centralized monitoring and management system."
⑧ using industrial grade terminals, reliable connection, to ensure long-term reliable work.
⑨ panel mounted or standard DIN rail mounting.
DTSD8080M-4Q / P (rail / panel) series of three-phase multi-loop smart meter officially on the line, reflecting the strength of our company, highlighting the technical level and product characteristics, but also for the China Railway Corporation base station exchange smart meter procurement and use Quality service and choice. Welcome to the major communications through the use of complete sets of factories to inquire, negotiate, sample. I will be closely with the Secretary for complete sets of companies timely inspection and inspection, to promote cooperation.

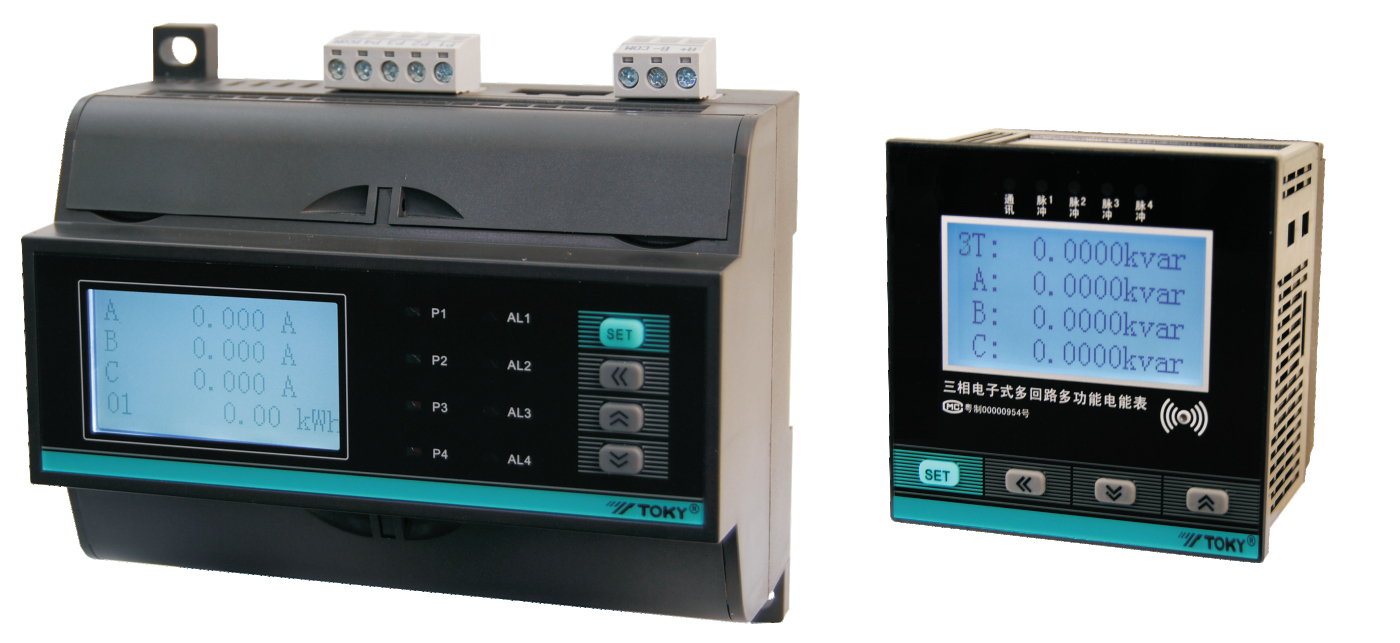

Product Image:
